Description

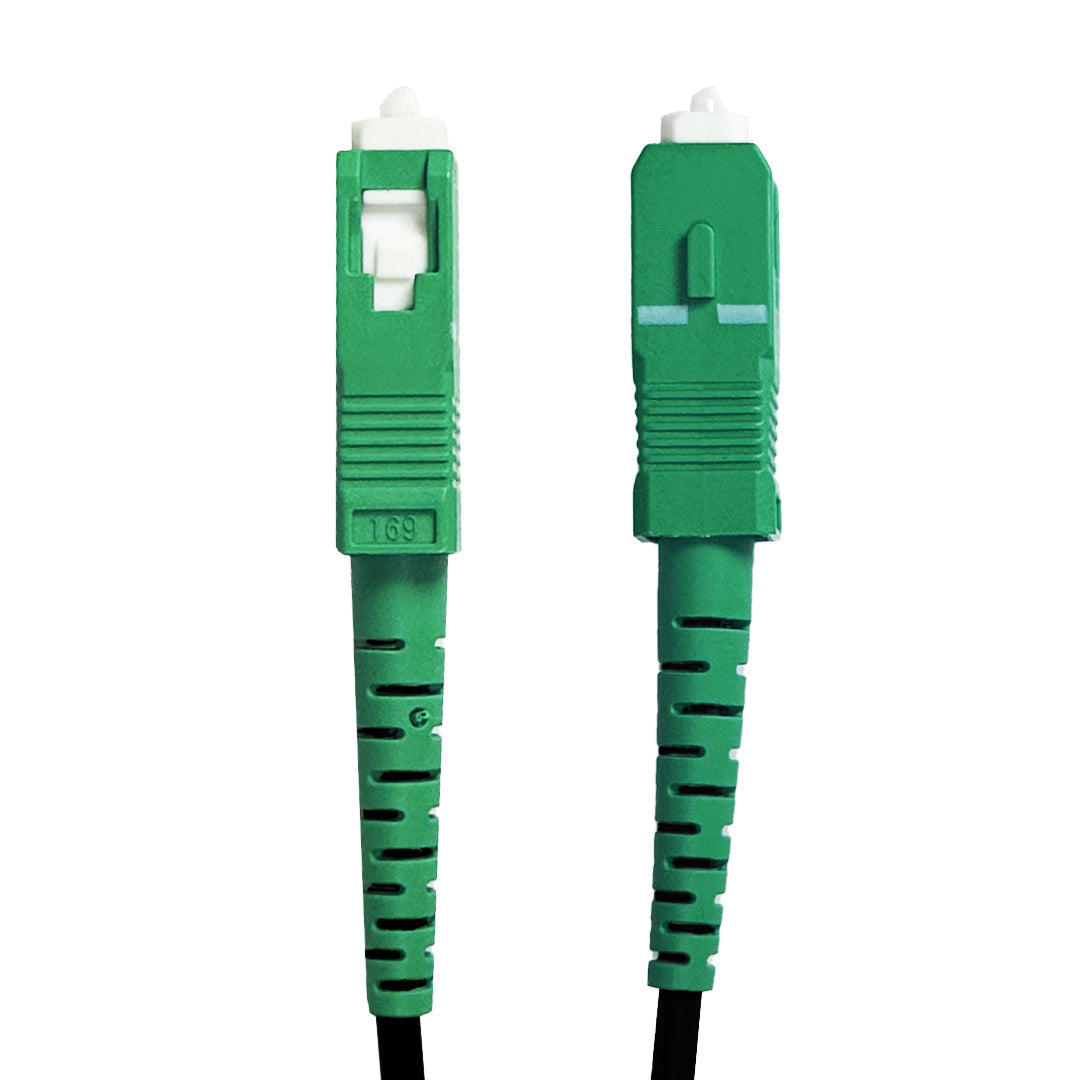

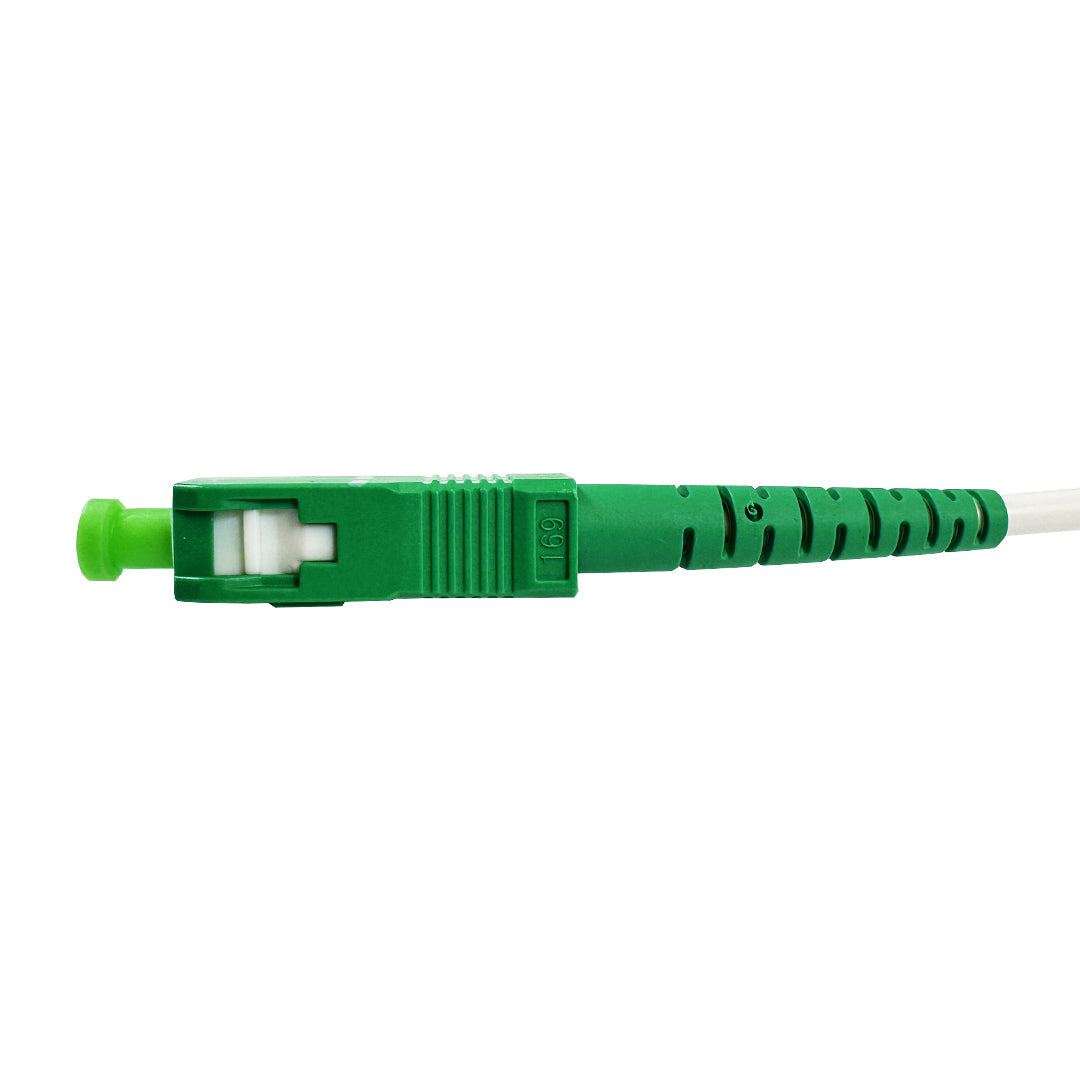

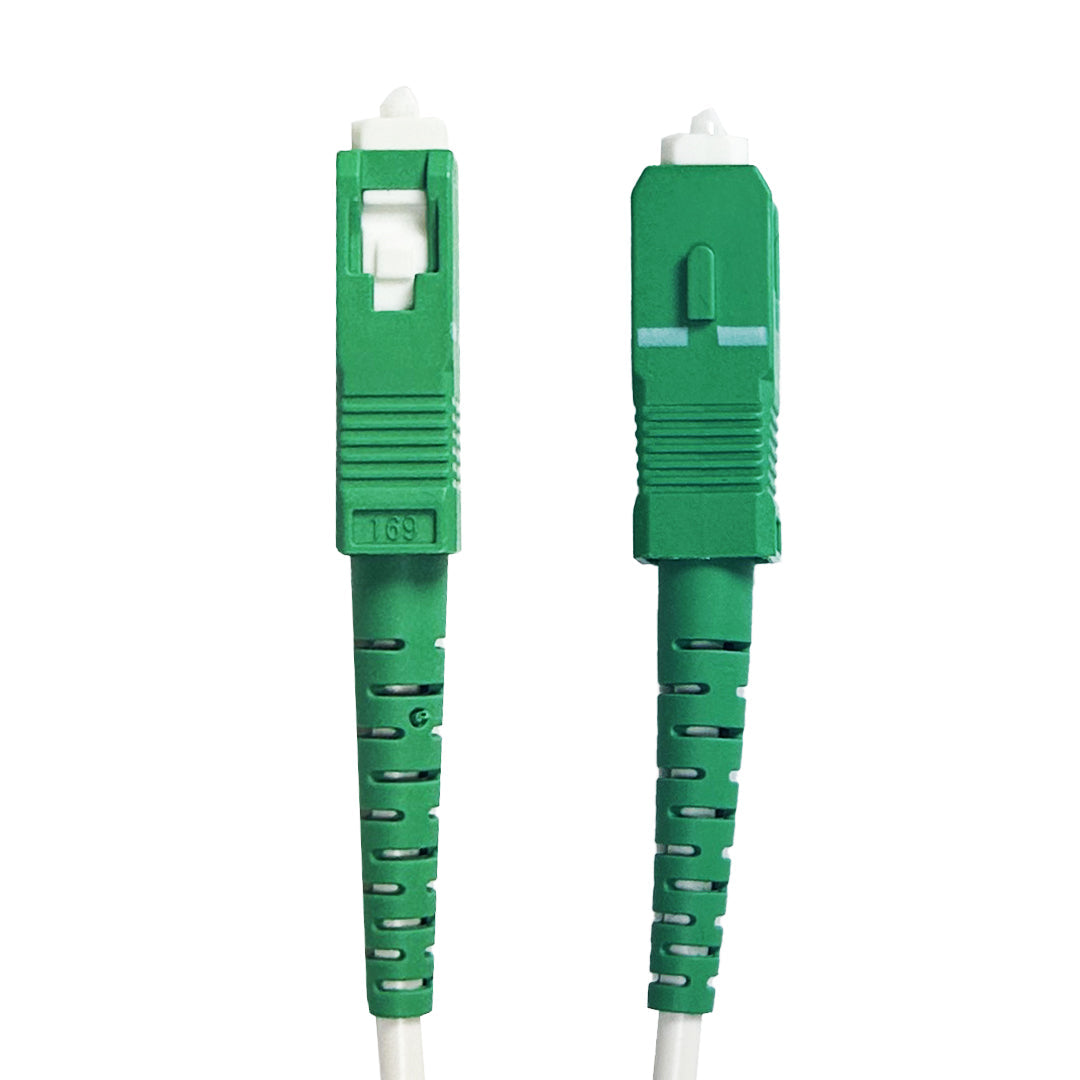

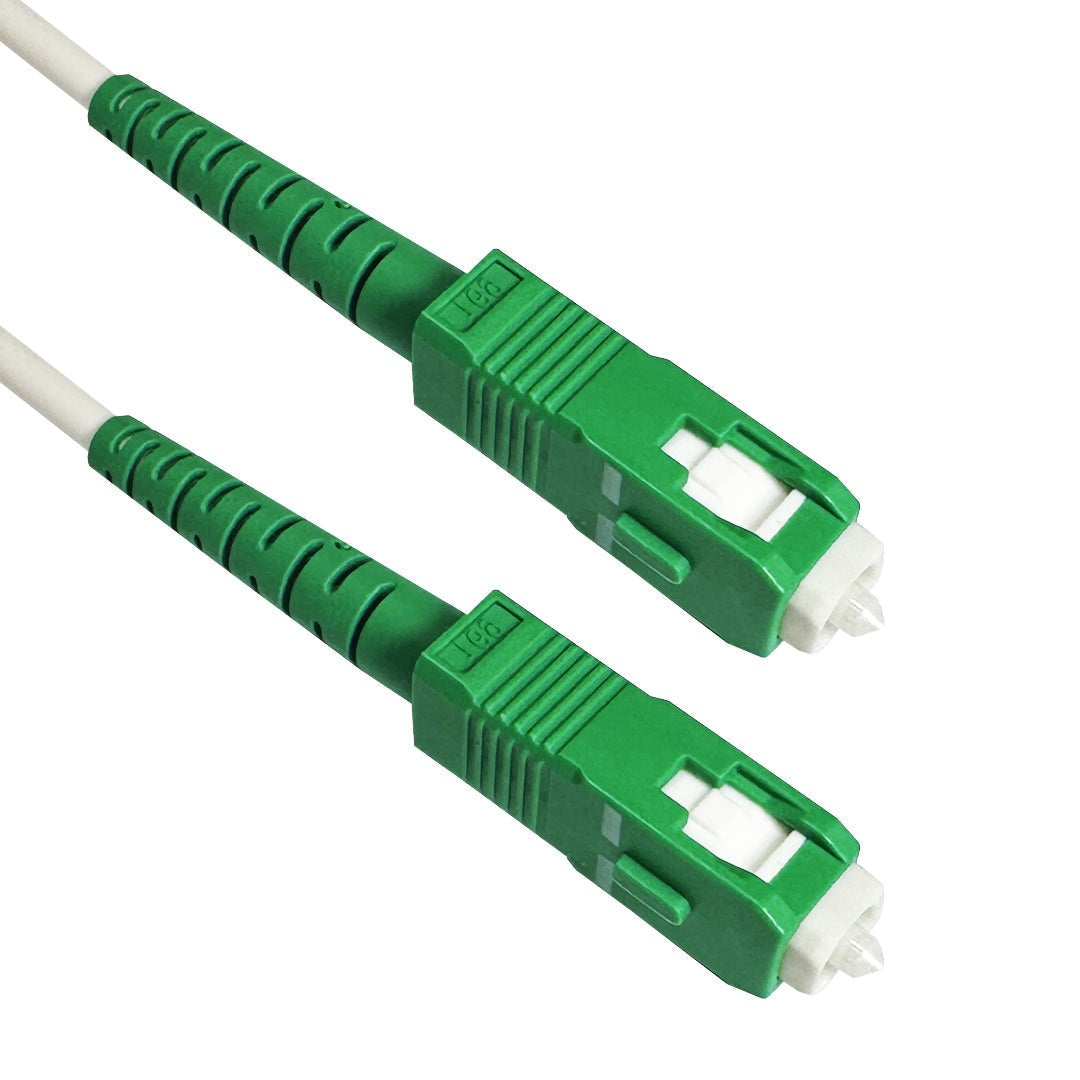

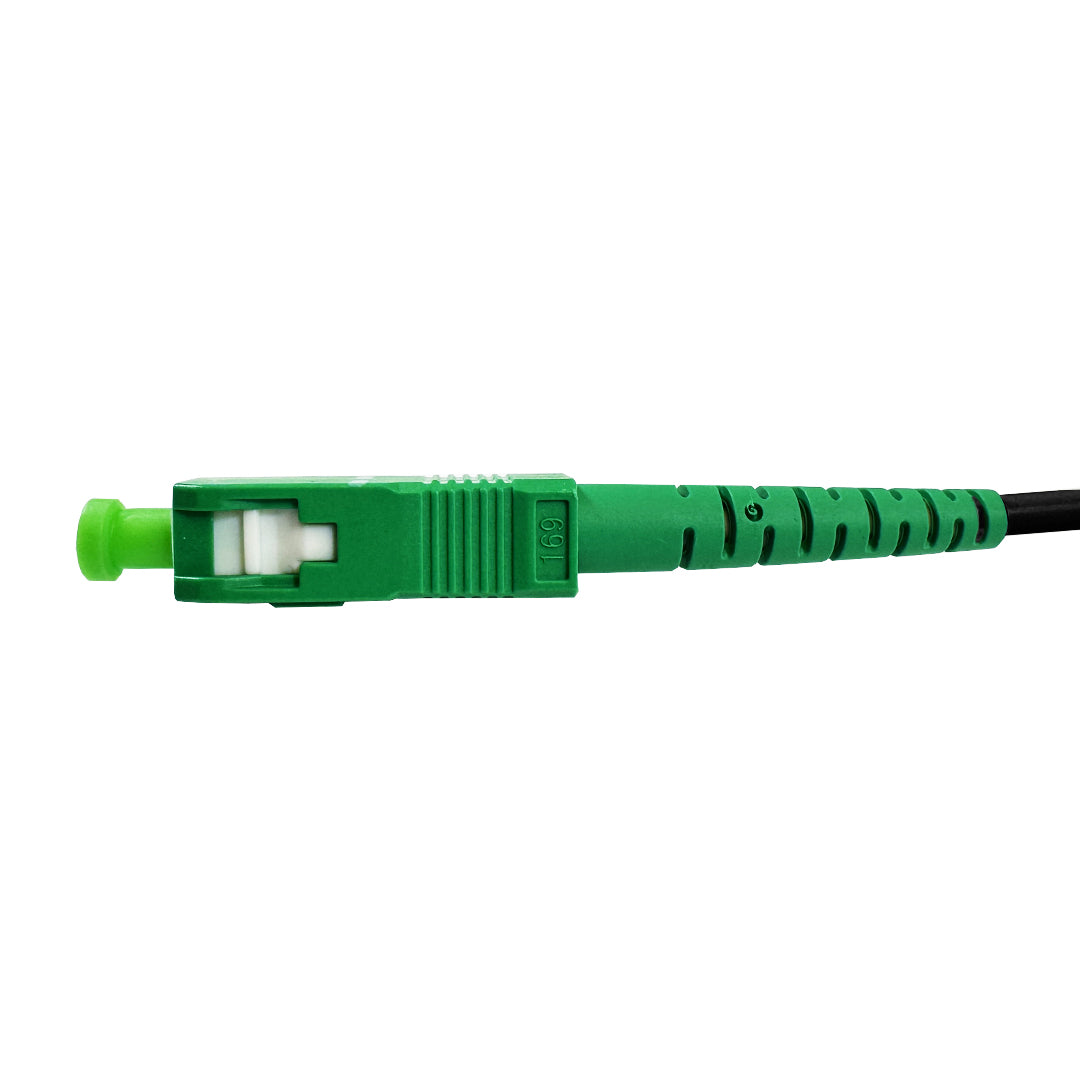

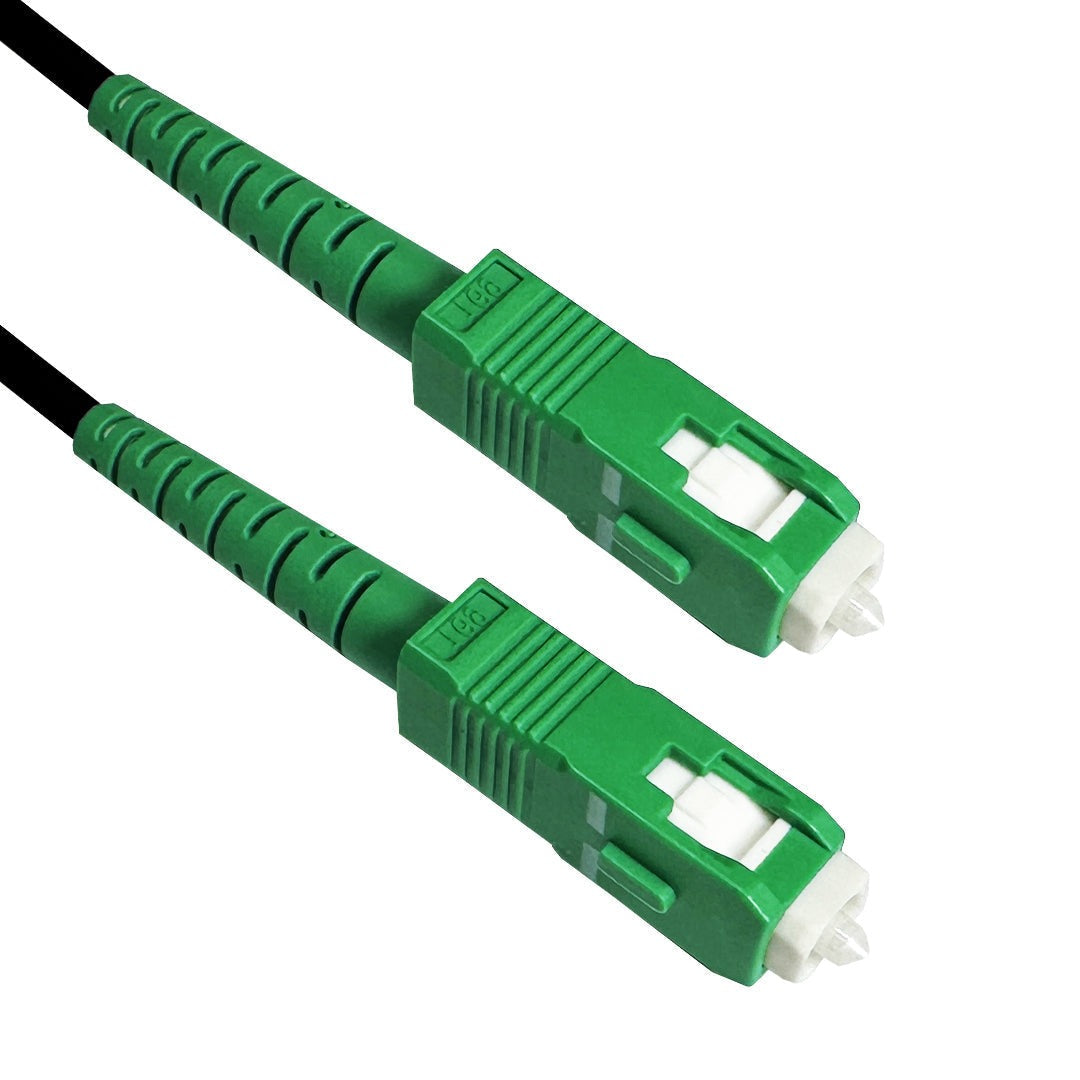

These 9 micron SC/APC fiber optic cables are made with Corning G657B3 fiber. They are constructed with a 3mm PVC OFNR riser indoor/outdoor rated jacket. They are tested to provide the optimum data transmission and network stability. They’re typically used to connect from a service provider’s fiber outlet to the router. Compatible with Bell, Google Fiber, UniFi Dream machine and more FTTH networks & hardware.
| Physical Characteristics | |
|---|---|
| Color | Black/ White |
| Cable Diameter | 3mm |
| Fiber Size | 9/125 micron |
| Fiber Type | Singlemode |
| Glass Manufacturer | Corning Glass (G657B3) |
| Connector Ferrules | Ceramic |
| Jacket Rating | Riser (OFNR) & Indoor/Outdoor |
| Max. Tensile |
Short Time : 150N Long Time : 50N |
| Bending Radius |
Dynamic : 10D Static : 20D |
| Temperature |
Installation : -20°C ~ +50°C Storage : -40°C ~ +70°C Operating : -40°C ~ +70°C |
| Connector(s) | |
| Connector A | SC/APC Simplex Male |
| Connector B | SC/APC Simplex Male |
| Optical Characteristics | |
| Mode Field Diameter |
@1310nm : 8.6±0.4?m @1550nm : 9.65±0.5?m |
| Cladding Diameter |
125.0±0.7um |
| Cladding Non-Circularity |
≤0.7% |
| Core-Cladding Concentricity Error |
≤0.5um |
| Coating Non-Circularity |
≤6.0% |
| Cladding-Coating Concentricity Error |
≤12.0um |
| Attenuation(max.) |
@1310nm : ≤0.4dB @1550nm : ≤0.3dB |
| Macro-Bending Loss |
@1550nm (1 turn x 5mm radius) : ≤0.1dB |
| Performance | |
| Insertion Loss |
≤0.2 dB |
| Return Loss | ≥60 dB |
| Speed | 10 Gbps |
| Approval | |
| UL, c(UL), IEC | Yes |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft - 1m | 6ft - 2m | 10ft - 3m | 15ft - 5m | 23ft - 7m | 30ft - 10m | 40ft - 12m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m | 131ft - 40m | 164ft - 50m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.04 lbs | 0.05 lbs | 0.06 lbs | 0.09 lbs | 0.16 lbs | 0.20 lbs | 0.21 lbs | 0.22 lbs | 0.33 lbs | 0.40 lbs | 0.49 lbs | 0.66 lbs | 0.78 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| FO-FH604-SCA2-03R-BK | 1m / Black | 0.07 lb |
| FO-FH604-SCA2-03R-WH | 1m / White | 0.07 lb |
| FO-FH604-SCA2-06R-BK | 2m / Black | 0.1 lb |
| FO-FH604-SCA2-06R-WH | 2m / White | 0.1 lb |
| FO-FH604-SCA2-10R-BK | 3m / Black | 0.15 lb |
| FO-FH604-SCA2-10R-WH | 3m / White | 0.15 lb |
| FO-FH604-SCA2-15R-BK | 5m / Black | 0.2 lb |
| FO-FH604-SCA2-15R-WH | 5m / White | 0.2 lb |
| FO-FH604-SCA2-23R-BK | 7m / Black | 0.24 lb |
| FO-FH604-SCA2-23R-WH | 7m / White | 0.24 lb |
| FO-FH604-SCA2-30R-BK | 10m / Black | 0.33 lb |
| FO-FH604-SCA2-30R-WH | 10m / White | 0.33 lb |
| FO-FH604-SCA2-40R-BK | 12m / Black | 0.38 lb |
| FO-FH604-SCA2-40R-WH | 12m / White | 0.38 lb |
| FO-FH604-SCA2-50R-BK | 15m / Black | 0.5 lb |
| FO-FH604-SCA2-50R-WH | 15m / White | 0.5 lb |
| FO-FH604-SCA2-65R-BK | 20m / Black | 0.63 lb |
| FO-FH604-SCA2-65R-WH | 20m / White | 0.63 lb |
| FO-FH604-SCA2-80R-BK | 25m / Black | 0.77 lb |
| FO-FH604-SCA2-80R-WH | 25m / White | 0.77 lb |
| FO-FH604-SCA2-100R-BK | 30m / Black | 0.95 lb |
| FO-FH604-SCA2-100R-WH | 30m / White | 0.95 lb |
| FO-FH604-SCA2-131R-BK | 40m / Black | 1.33 lb |
| FO-FH604-SCA2-131R-WH | 40m / White | 1.33 lb |
| FO-FH604-SCA2-164R-BK | 50m / Black | 1.55 lb |
| FO-FH604-SCA2-164R-WH | 50m / White | 1.55 lb |
