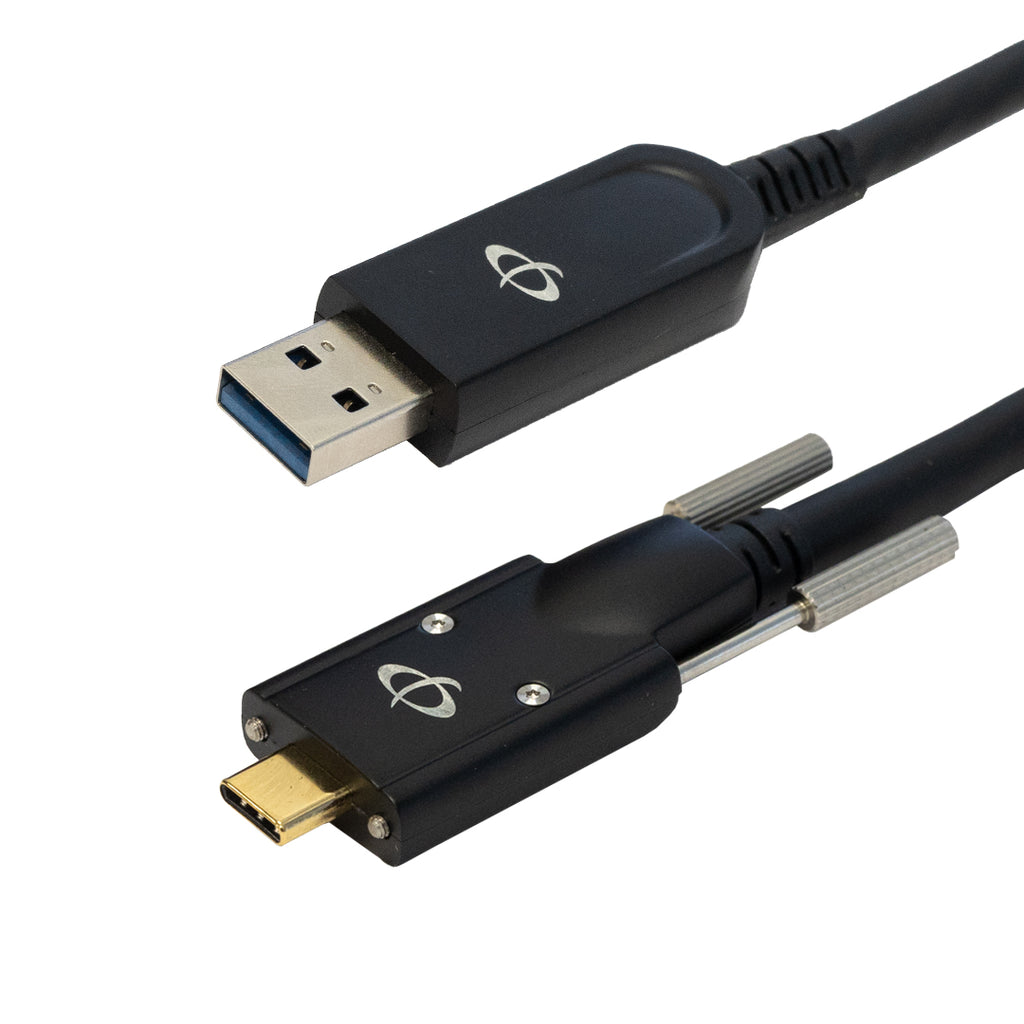

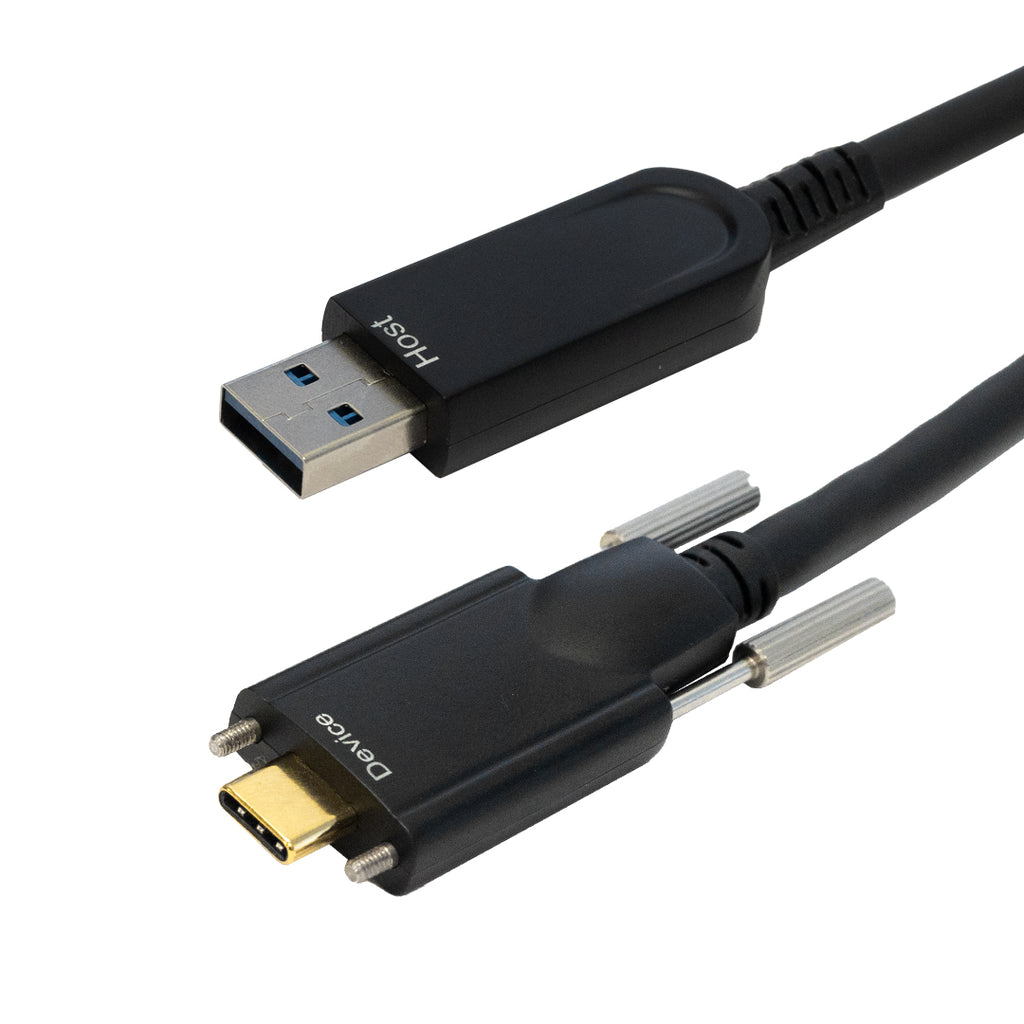

These active optical drag chain cables consist of a USB 3.1A male on one end and Type-C male on other end. They are capable of transferring data at 10Gbps and support 5V 800mA of power. Ideal for industrial automation environments, these cables can be used in drag chains and have locking thumbscrews on the micro-B side for long term performance without accidental disconnects.
Features:
- Meet USB 3.1 Gen2 standards with a bandwidth of 10Gbps
- Support 5V 800mA max
- Plug and play operation
- Backwards compatible with USB2.0/1.1 standards
- AOC construction ensures no RF interference and stable performance
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Connectors | |
| Connector A (Source) | USB 3.1A Male |
| Connector B (Device) | Type-C Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed – Gen 2 |
| Speed | 10 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB (2.0 and 1.1) |
| Power | 5V 800mA |
| Approvals | |
| CE | Yes |
| FCC | Yes |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Years Warranty |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on range of USB cables, HDMI cables, Display Port Cables and various adapters to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| USB-329AOD-5M | 5m | 0.78 lb |
| USB-329AOD-8M | 8m | 1.08 lb |
| USB-329AOD-10M | 10m | 1.26 lb |
| USB-329AOD-15M | 15m | 1.75 lb |
